Japa® 435

A professional machine bursting with innovation

Download brochure

Product videos

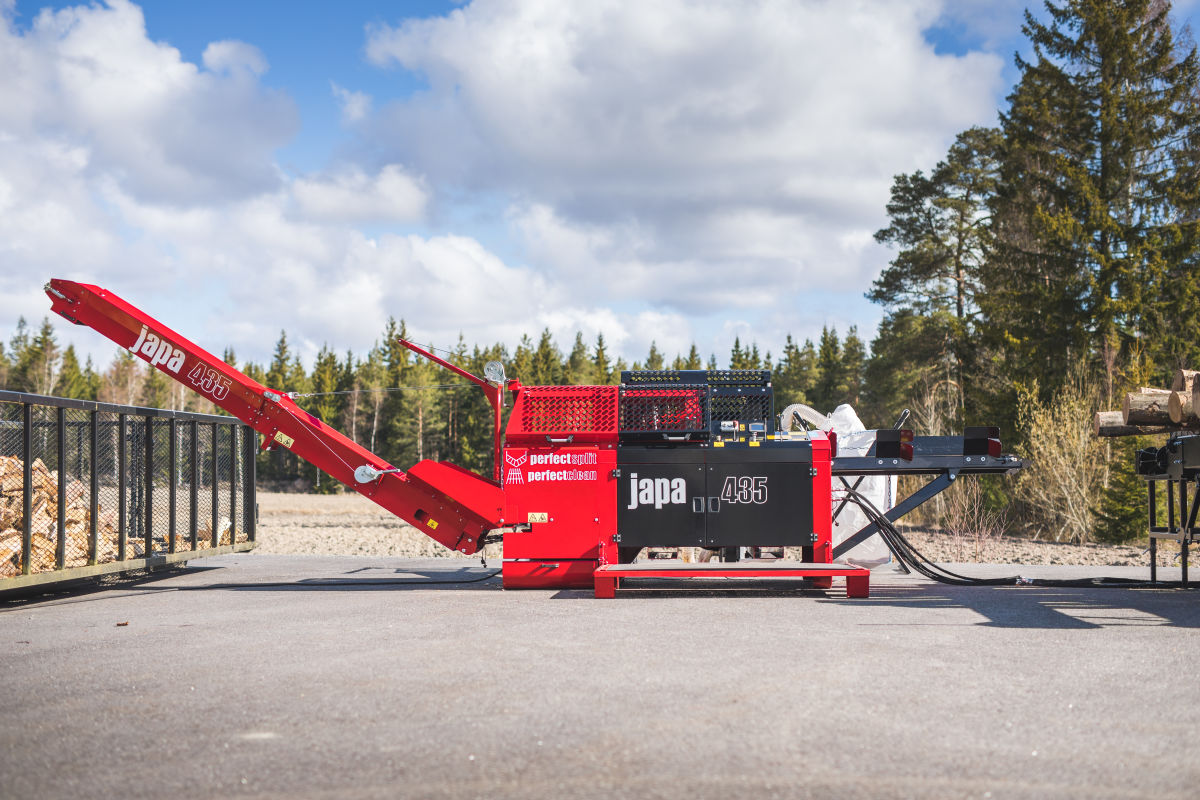

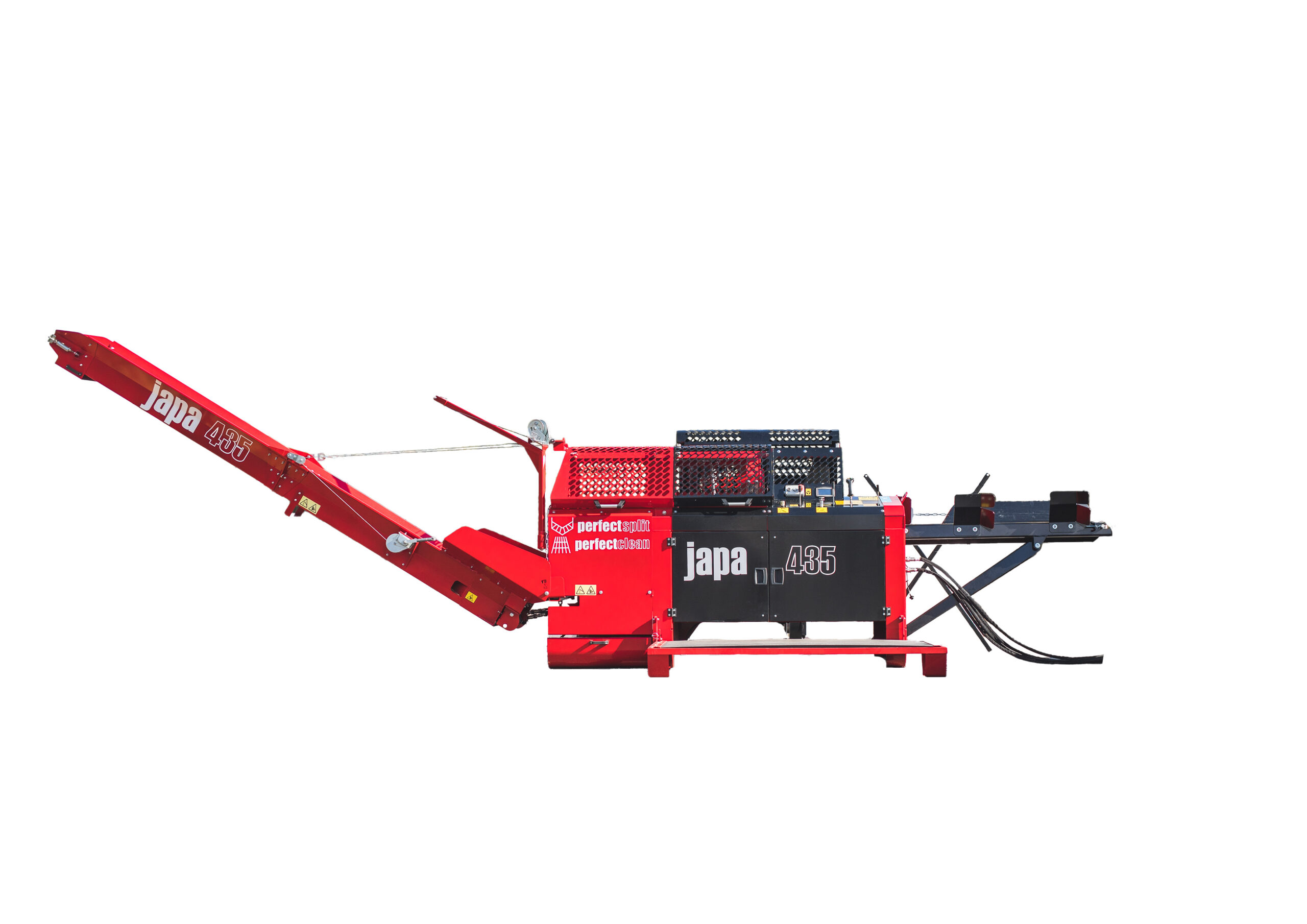

Japa® 435 is a firewood processor for professionals that boasts a new patented splitting knife, a patented cleaning mechanism and a fully revamped design. It is suited for soft and hard wood of all sizes. Japa® 435 produces clean firewood of consistent quality safely and effortlessly.
The hydraulic chainsaw with a 20-inch bar enables the input of logs with a thickness of up to 43 cm. Japa® 435 is available with a 15 kW electric motor, tractor power take-off or a combination of the two.

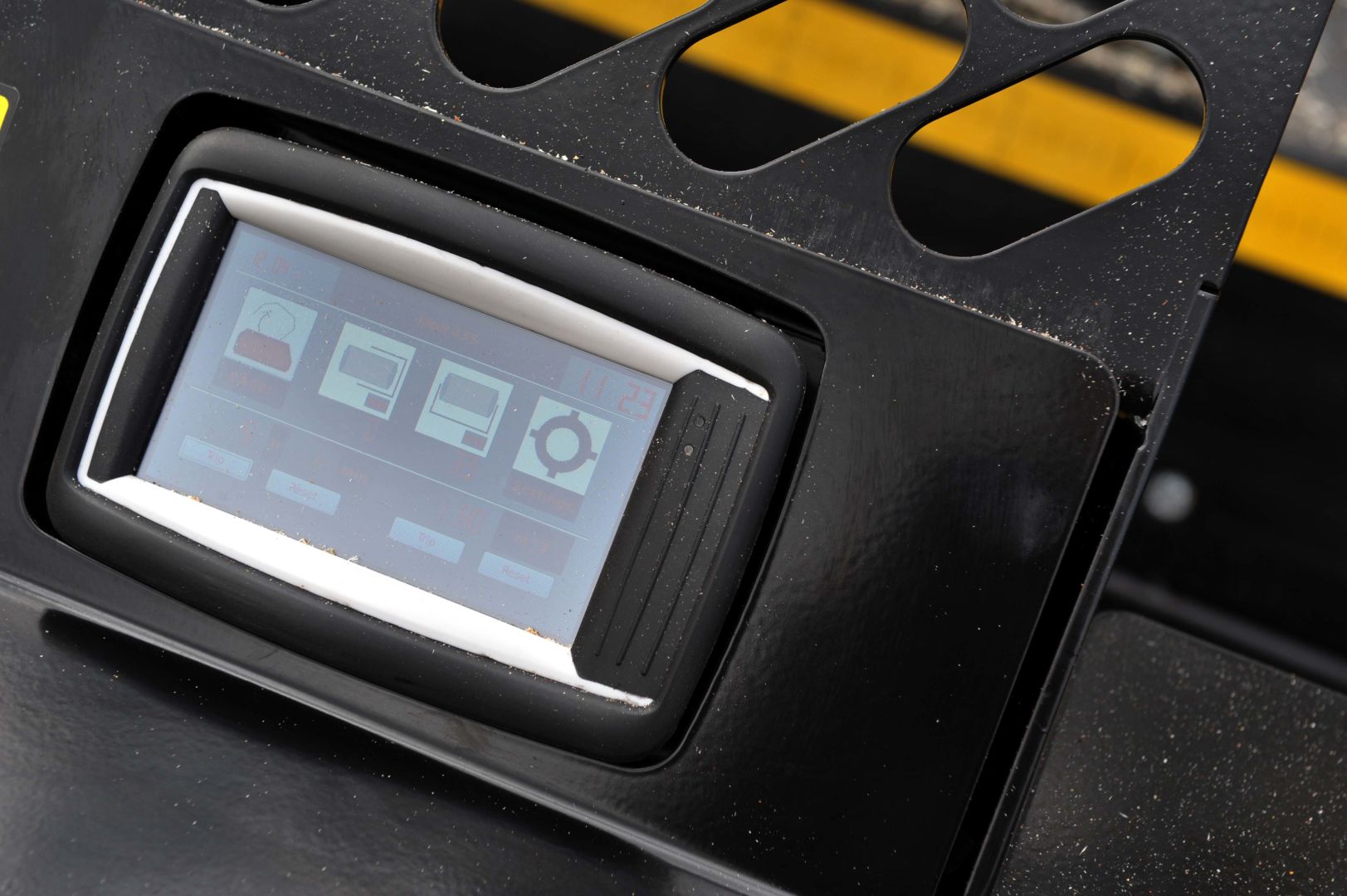

The operation of the Japa® 435 model is controlled by a smart system that assists the user. The machine is equipped with sensors that measure and control its operation in real time. The firewood processor can automatically optimise its functions according to the wood being processed. A wide range of accessories is available for the processor, including a touch screen that presents the user with performance data and other analytics regarding the machine.

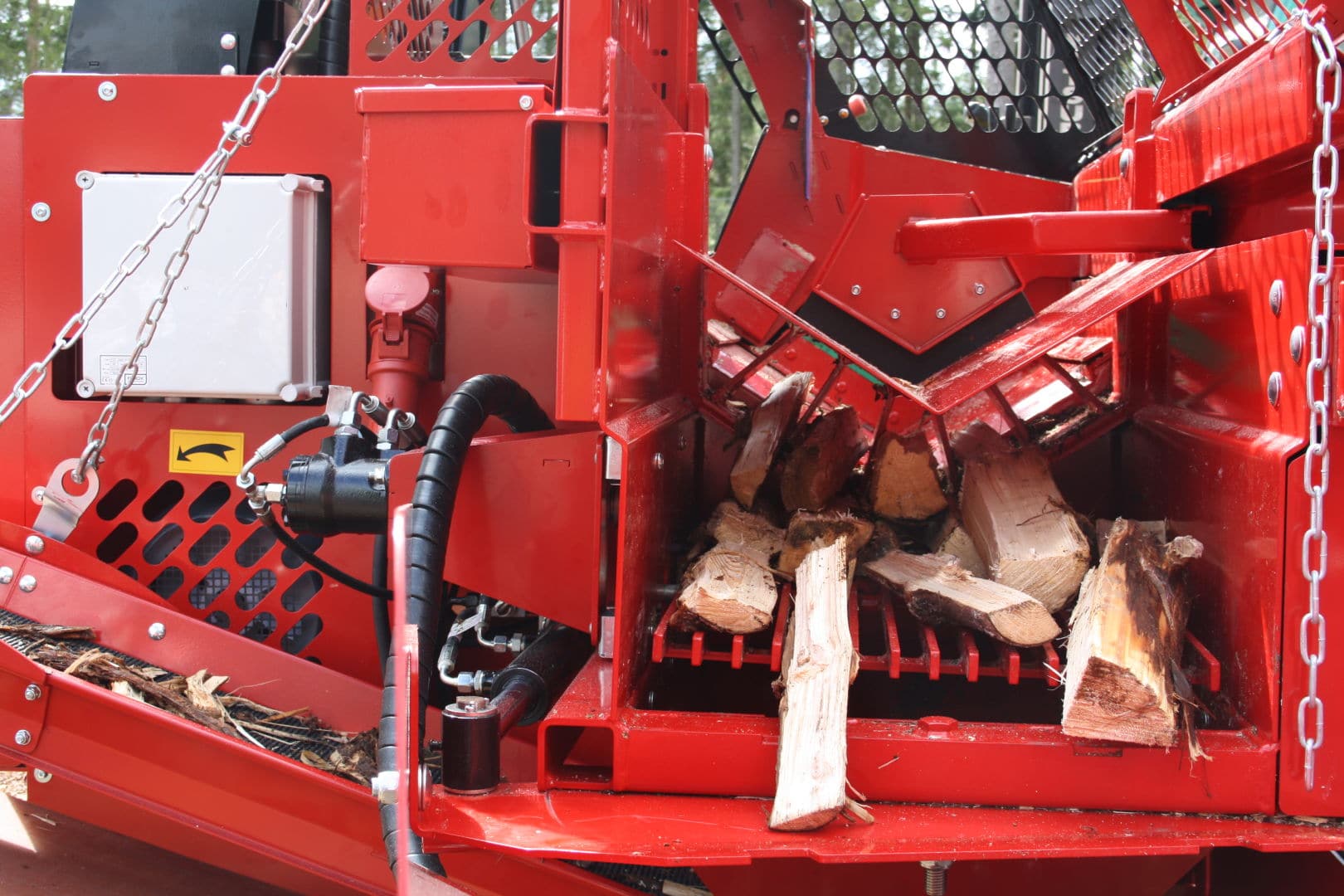

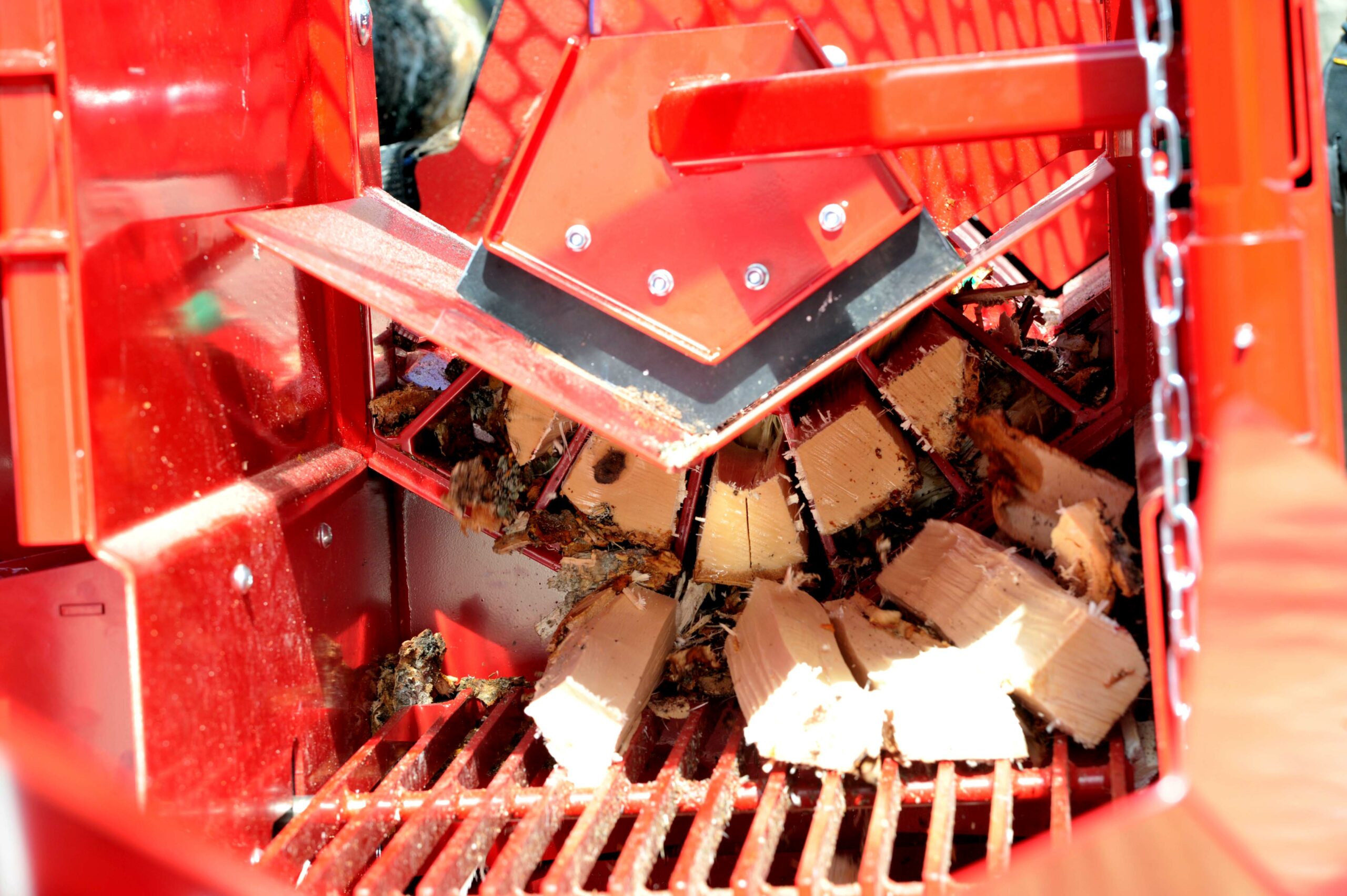

Perfect Split™ revolutionises splitting

Perfect Split™ is a patented splitting method developed by Japa’s innovative product development team. Thanks to the new splitting knife and method, the firewood consistently meets A grade size requirements even with varying raw material size.

The new splitting knife ensures that the Japa® 435 processor is always fast, efficient and easy to use, regardless of the hardness and diameter of the wood being processed. The size of the end product can be affected with different knife alternatives. You can also select the desired knife size when buying the machine.

Perfect Clean™ removes debris efficiently

The Japa® 435 model features the new patented Perfect Clean™ cleaning system that clears processed firewood of dust and debris by means of vibration. The Perfect CleanTM cleaning system is installed behind the splitting section, and a separate conveyor is used to move the debris away.

Perfect Clean™ was developed to meet the growing need of end customers to produce clean and debris-free firewood. Thanks to Perfect Clean it is now easier and more effortless than ever before to meet this need. The patented Perfect CleanTM cleaning system is available as an accessory.

GeneralTRETRE
Tree diameter (max, cm)43 cm 43 cm 43 cm
Tree length (max, cm)55 cm55 cm55 cm
TRETRE
Splitting power (T)12 T12 T12 T
Cutting TRETRE
Chain saw flange20"/.404/1.6mm20"/.404/1.6mm20"/.404/1.6mm
Chain saw chain20"/.404/71 L20"/.404/71 L20"/.404/71 L
Chain saw oil tank volume10 l10 l10 l
Hydraulic oil amount (L)100 l100 l100 l
TRETRE
Power sourceElectric + tractorTractorElectric
Power TRETRE
Electric motor power (kW)15 kW15 kW
Electric motor voltage (V)400 V400 V
Fuse (A)32 A32 A
Tractor power output (r/min)400 rpm400 rpm
Transmission oil80W-9080W-90
TRETRE
Weight (kg)2080 kg1930 kg2040 kg
Working position width (mm)7570 mm7570 mm7570 mm
Working position depth (mm)3820 mm3820 mm3820 mm
Working position height (mm)3380 mm3380 mm3380 mm
Transport position width (mm)3490 mm3490 mm3490 mm
Transport position depth (mm)1970 mm1970 mm1970 mm
Transport position height (mm)2700 mm2700 mm2700 mm
Outfeed conveyor width (mm)300 mm300 mm300 mm
Outfeed conveyor length (mm)4200 mm4200 mm4200 mm
Infeed conveyor length (mm)300 mm300 mm300 mm
