Japa® 395

Efficient and adaptable

Download brochure

Product videos

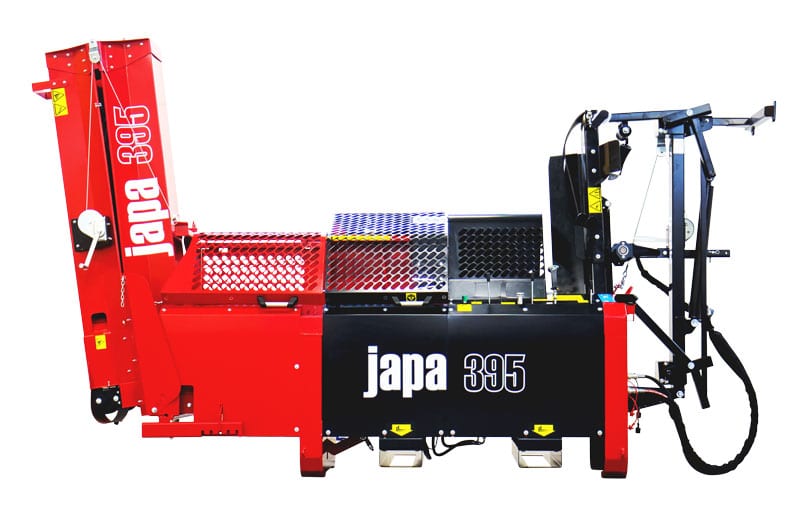

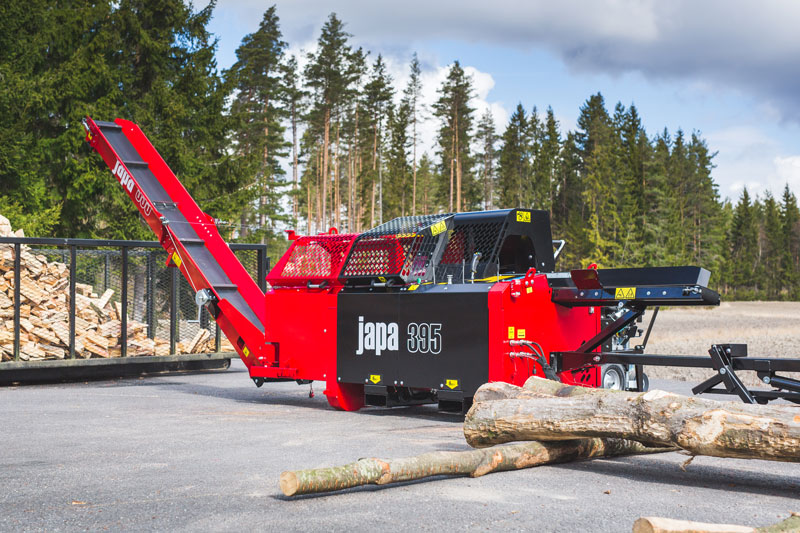

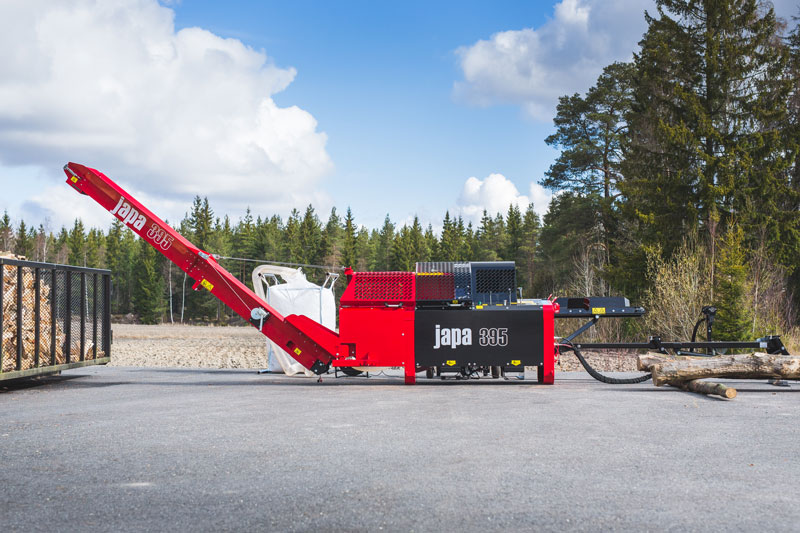

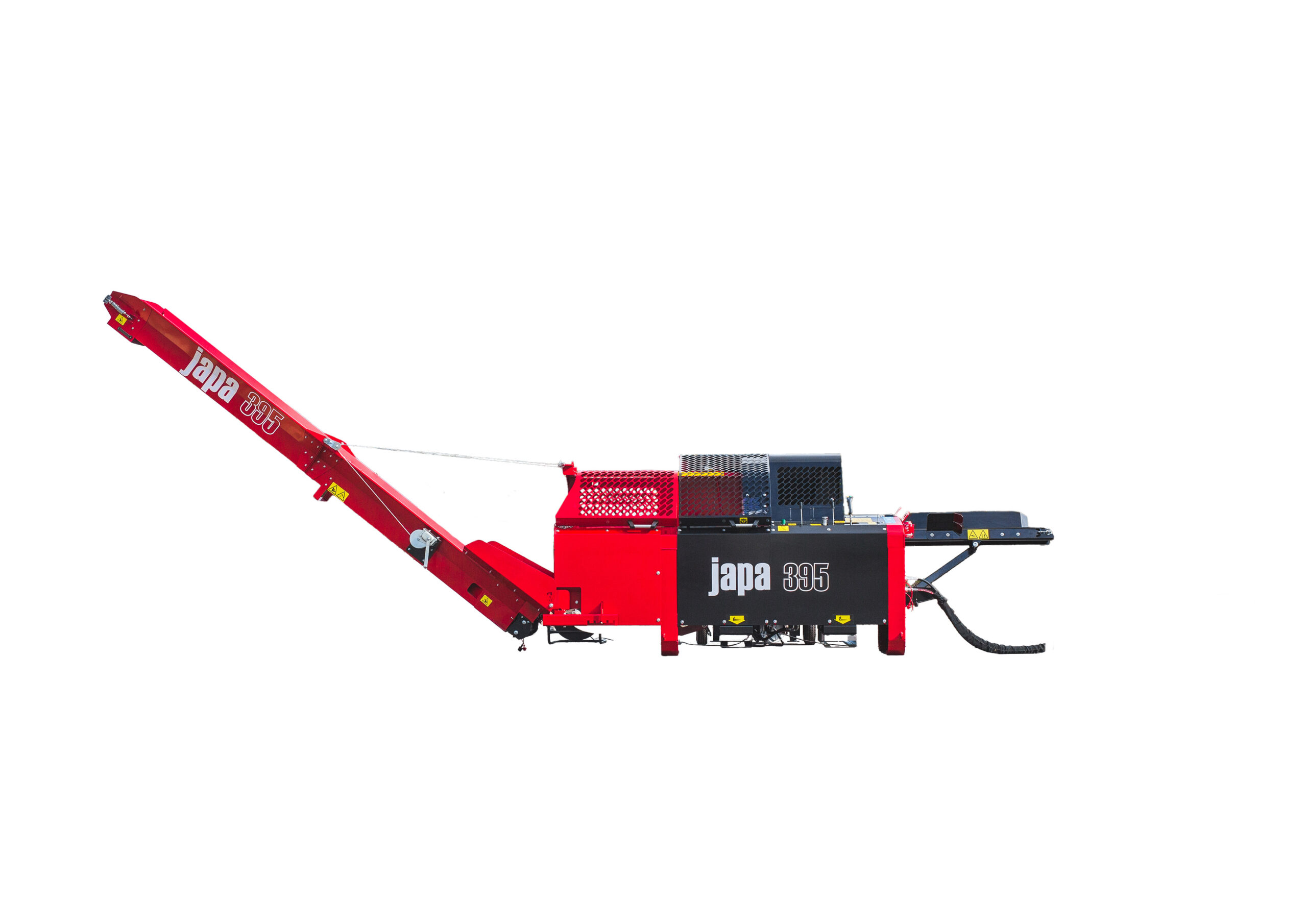

Japa® 395 is a new-generation rewood processor. Reliability and safety were our key priorities in designing the new processor. The new Japa® 395 includes a hydraulic log press, upgraded pusher and a hydraulic adjustable knife, log length limiter, guide plate and lubrication pump.
The new design and active safety grills guarantee excellent visibility inside the machine and facilitate the maintenance of key components. The design of the guards was driven by safety and maintenance. If a guard is open, the splitting cylinder and cutting are deactivated.

We have improved the reliability of the processor with a new electric steering system. The processor has no mechanical parts that are subject to wear and require adjusting. Furthermore, the key functions of the processor can be performed by one hand with a joystick that controls feeding, sawing, splitting and the guide plate.

Efficient and adaptable

The new, efficient features of Japa® 395 and its ease of maintenance keep service outages short, allowing you to focus on what is relevant – cutting logs.
Japa® 395 has an extensive selection of accessories.

The patented Perfect clean™ system with a log deck and risers is available for the processor. The system uses vibrations to remove debris from split logs. The Perfect Clean™ cleaning system is installed behind the splitting section, and a separate conveyor is used to move the debris away. Optional accessories also include a hydraulic, turning conveyor, log table output and a range of knife options.

GeneralTRTREE
Default blade6-way wedge6-way wedge6-way wedge
Tree diameter (max, cm)40 cm40 cm40 cm
Tree length (max, cm)52 cm52 cm52 cm
TRTREE
Splitting power (T)7 T7 T7 T
Cutting span TRTREE
Chain saw flange16"/.325/1.5mm16"/.325/1.5mm16"/.325/1.5mm
Chain saw chain16"/.325/66 L16"/.325/66 L16"/.325/66 L
Chain saw oil tank volume3 l3 l3 l
Hydraulic oil amount (L)45 l45 l45 l
TRTREE
Power sourceTractorElectric + tractorElectric
PowerTRTREE
Electric motor power (kW)10 kW10 kW
Electric motor voltage (V)400 V400 V
Tractor power output (r/min)400 rpm400 rpm
Transmission oil80W-9080W-90
TRTREE
Weight (kg)1135 kg1240 kg1185 kg
Working position width (mm)7345 mm7345 mm7345 mm
Working position depth (mm)1260 mm1260 mm1260 mm
Working position height (mm)3200 mm3200 mm3200 mm
Transport position width (mm)3420 mm3420 mm3420 mm
Transport position depth (mm)1260 mm1260 mm1260 mm
Transport position height (mm)2495 mm2495 mm2495 mm
Outfeed conveyor width (mm)300 mm300 mm300 mm
Outfeed conveyor length (mm)4400 mm4400 mm4400mm
Infeed conveyor length (mm)200 mm200 mm200 mm

Japa® 395 is a new-generation rewood processor. Reliability and safety were our key priorities in designing the new processor. The new Japa® 395 includes a hydraulic log press, upgraded pusher and a hydraulic adjustable knife, log length limiter, guide plate and lubrication pump.
The new design and active safety grills guarantee excellent visibility inside the machine and facilitate the maintenance of key components. The design of the guards was driven by safety and maintenance. If a guard is open, the splitting cylinder and cutting are deactivated.

We have improved the reliability of the processor with a new electric steering system. The processor has no mechanical parts that are subject to wear and require adjusting. Furthermore, the key functions of the processor can be performed by one hand with a joystick that controls feeding, sawing, splitting and the guide plate.

Efficient and adaptable

The new, efficient features of Japa® 395 and its ease of maintenance keep service outages short, allowing you to focus on what is relevant – cutting logs.
Japa® 395 has an extensive selection of accessories.

The patented Perfect clean™ system with a log deck and risers is available for the processor. The system uses vibrations to remove debris from split logs. The Perfect Clean™ cleaning system is installed behind the splitting section, and a separate conveyor is used to move the debris away. Optional accessories also include a hydraulic, turning conveyor, log table output and a range of knife options.

GeneralTRTREE
Default blade6-way wedge6-way wedge6-way wedge
Tree diameter (max, cm)40 cm40 cm40 cm
Tree length (max, cm)52 cm52 cm52 cm
TRTREE
Splitting power (T)7 T7 T7 T
Cutting span TRTREE
Chain saw flange16"/.325/1.5mm16"/.325/1.5mm16"/.325/1.5mm
Chain saw chain16"/.325/66 L16"/.325/66 L16"/.325/66 L
Chain saw oil tank volume3 l3 l3 l
Hydraulic oil amount (L)45 l45 l45 l
TRTREE
Power sourceTractorElectric + tractorElectric
PowerTRTREE
Electric motor power (kW)10 kW10 kW
Electric motor voltage (V)400 V400 V
Tractor power output (r/min)400 rpm400 rpm
Transmission oil80W-9080W-90
TRTREE
Weight (kg)1135 kg1240 kg1185 kg
Working position width (mm)7345 mm7345 mm7345 mm
Working position depth (mm)1260 mm1260 mm1260 mm
Working position height (mm)3200 mm3200 mm3200 mm
Transport position width (mm)3420 mm3420 mm3420 mm
Transport position depth (mm)1260 mm1260 mm1260 mm
Transport position height (mm)2495 mm2495 mm2495 mm
Outfeed conveyor width (mm)300 mm300 mm300 mm
Outfeed conveyor length (mm)4400 mm4400 mm4400mm
Infeed conveyor length (mm)200 mm200 mm200 mm
