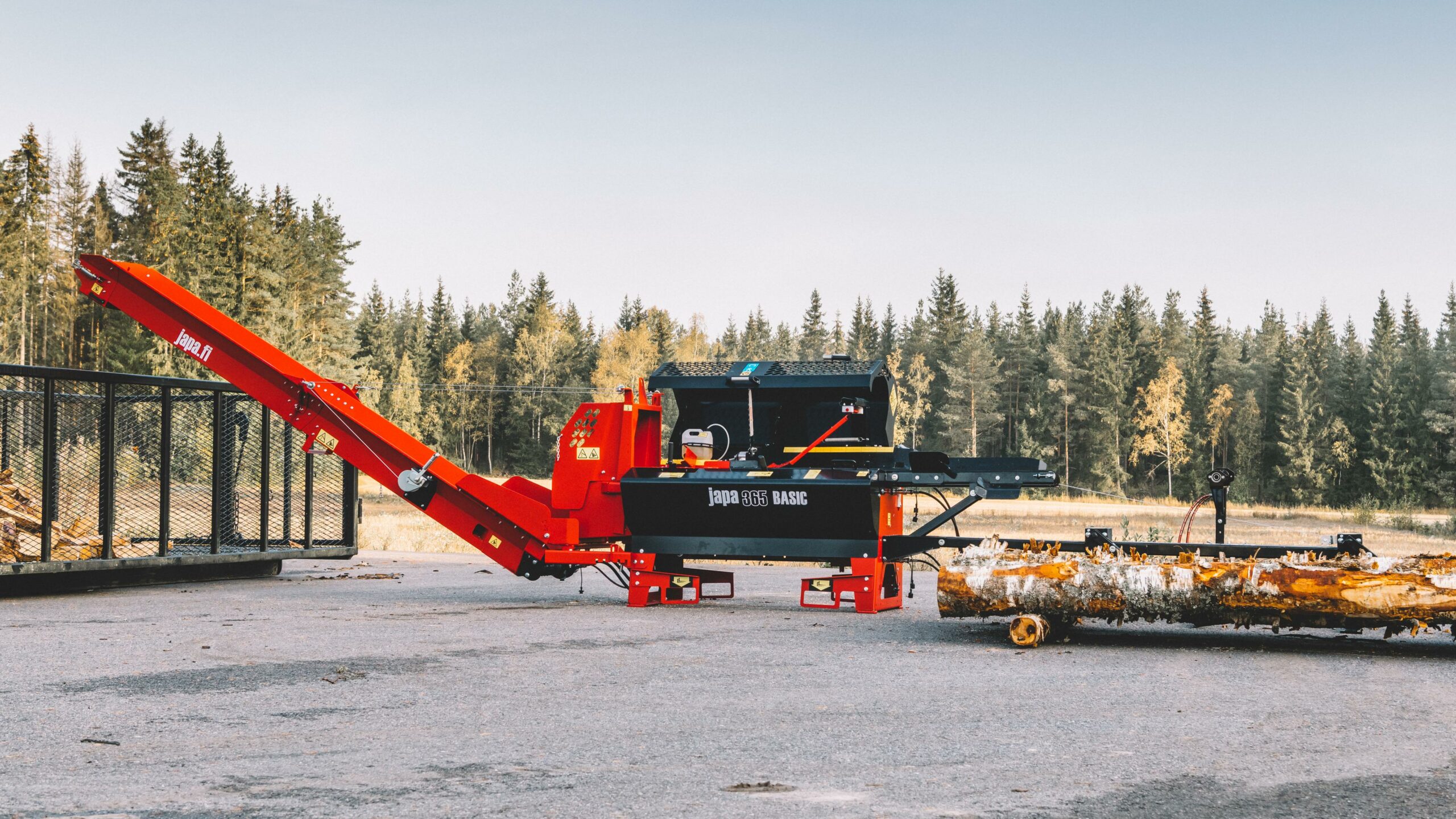

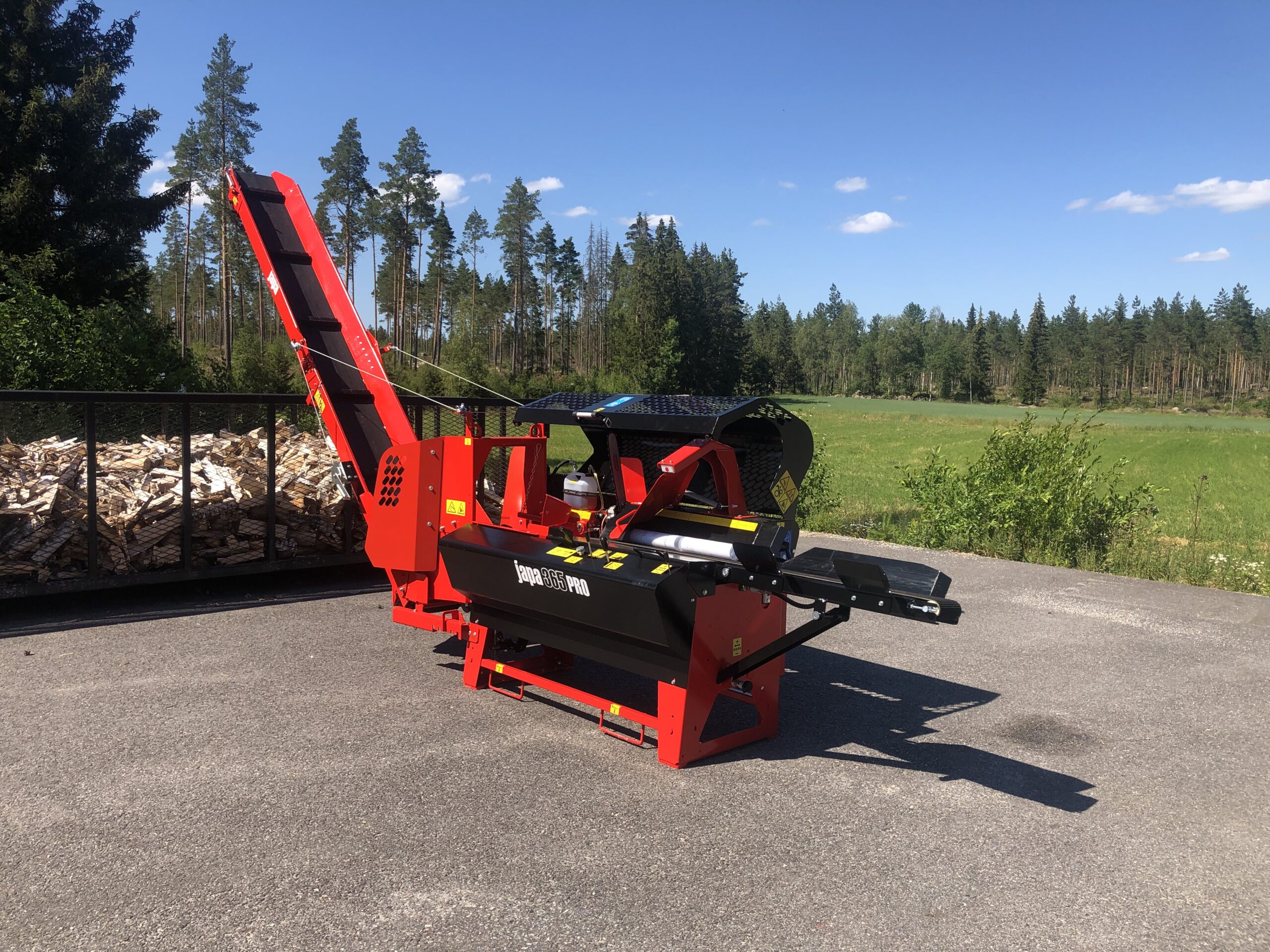

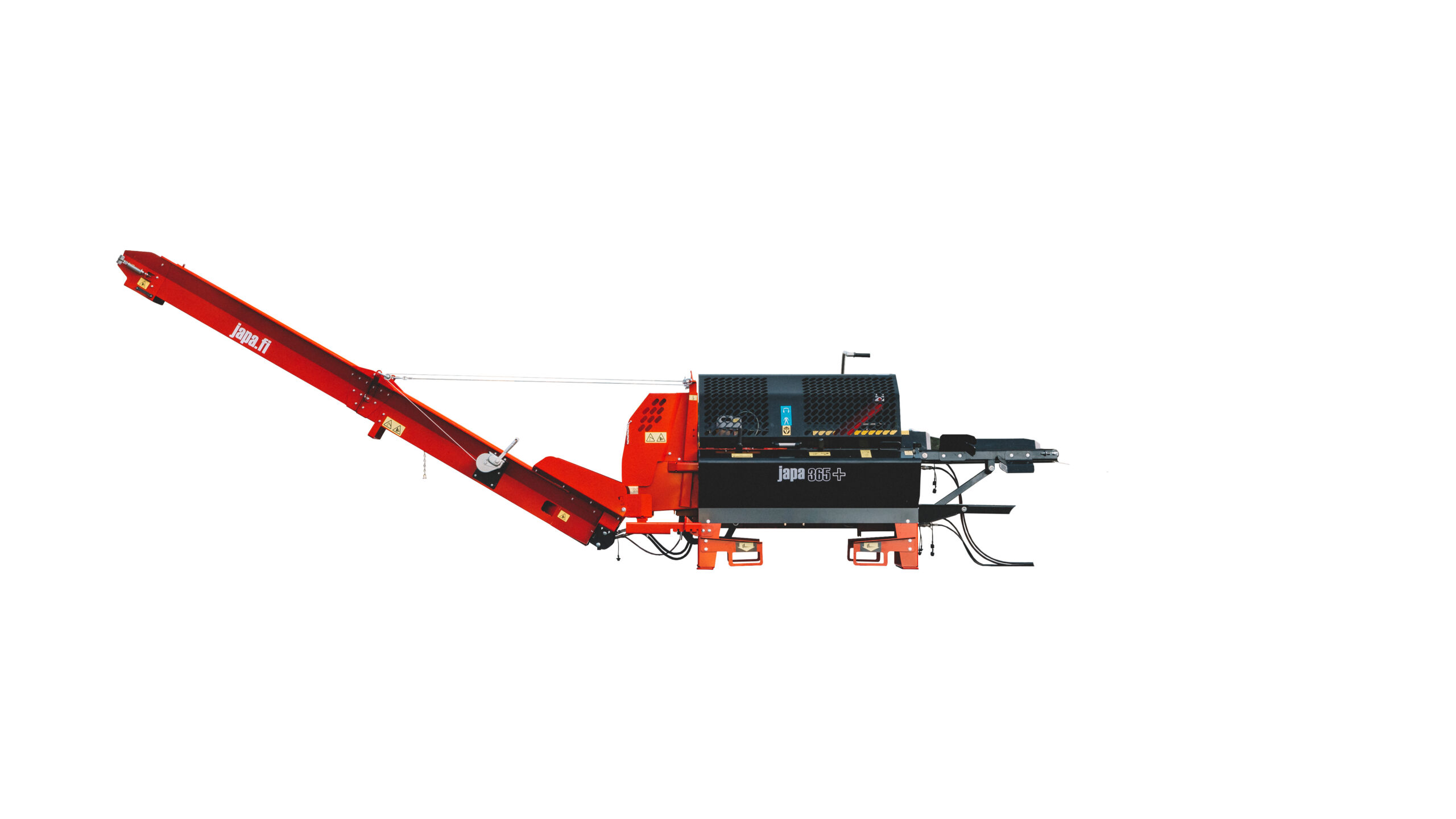

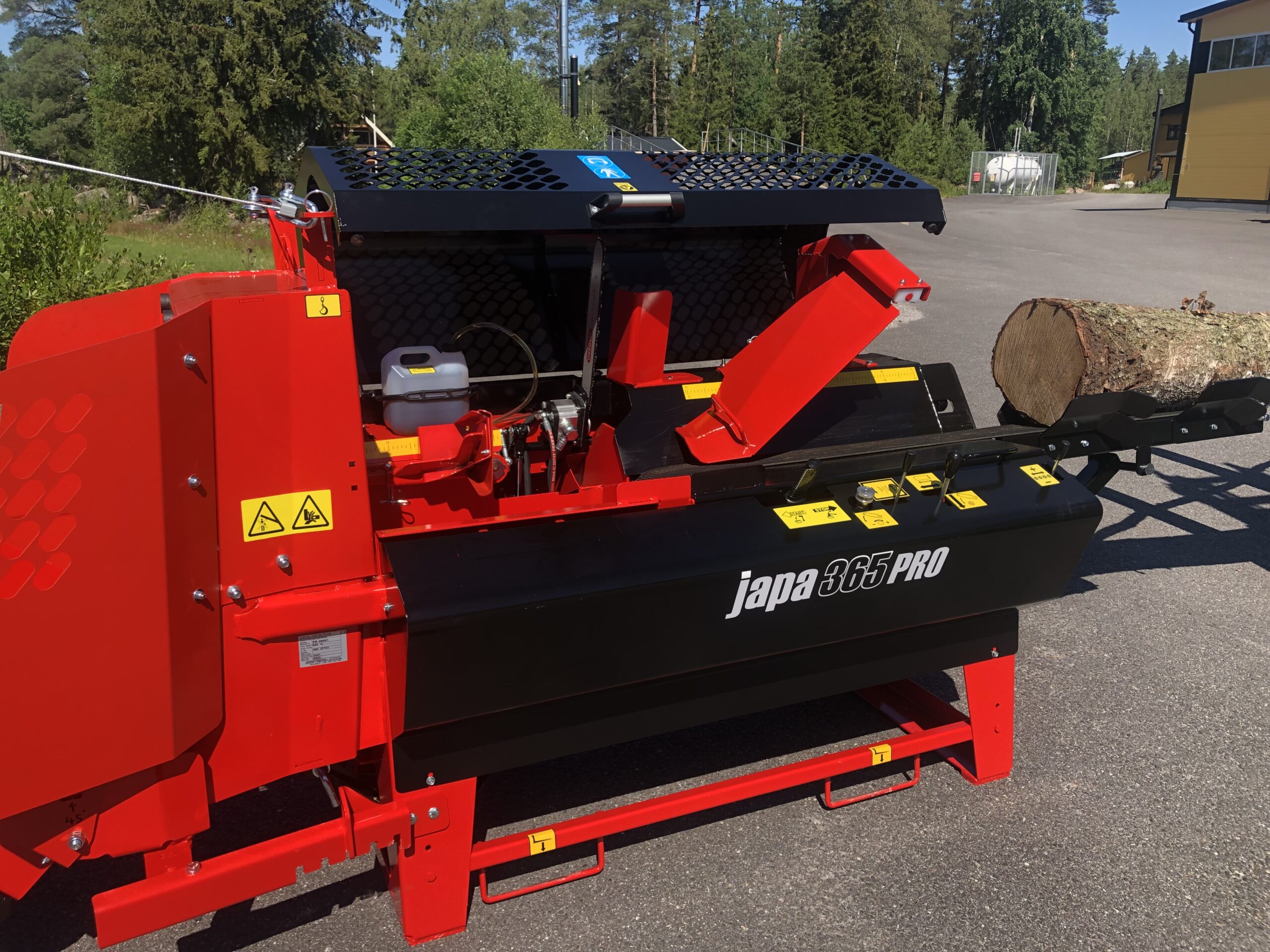

Japa® 365

The firewood professional’s choice

Download brochure

Product videos

Versatile machine is equipped with extensive features fitting for all purposes.

Japa® 365 can be run with tractor PTO, electric motor or combustion engine and can be equipped with tires for legal road use.

Hydraulics are optimized for the full professional use and allow user to cut and split simultaneously enabling high output and uptime for the machine. The well-designed hydraulic and mechanic power transmission can be heard from the pleasant sound of the machine.

Japa 365® comes always with hydraulic outtake, allowing wide use of accessories like timber decks, feeding rolls, and the best log lifter in the markets, produced proudly by Japa®

GeneralTREETRROAD
Default blade4-way wedge4-way wedge4-way wedge4-way wedge
Tree diameter (max, cm)36 cm36 cm36 cm36 cm
Tree length (max, cm)60 cm60 cm60 cm60 cm
TREETRROAD
Splitting power (T)7 T7 T7 T7 T
Cutting TREETRROAD
Chain saw flange15" / .325 / 1.3 mm15" / .325 / 1.3 mm15" / .325 / 1.3 mm15" / .325 / 1.3 mm
Chain saw chain15" / .325 / 64 L15" / .325 / 64 L15" / .325 / 64 L15" / .325 / 64 L
Chain saw oil tank volume3 l3 l3 l3 l
Hydraulic oil amount (L)40 l40 l40 l45 l
TREETRROAD
Power sourceElectric + tractorElectricTractorCombustion engine
Power TREETRROAD
Electric motor power (kW)7.5 kW7.5 kW
Electric motor voltage (V)400 V400 V
Fuse (A)20 A20 A
Tractor power output (r/min)400 rpm
Transmission oil80W 9080W 90
Combustion engine modelHonda, 22hv
TREETRROAD
Weight (kg)695 kg620 kg625 kg1100 kg
Working position width (mm)5850 mm5850 mm5850 mm5850 mm
Working position depth (mm)1030 mm1030 mm1030 mm1030 mm
Working position height (mm)3000 mm3000 mm3000 mm3000 mm
Transport position width (mm)2370 mm2370 mm2370 mm2370 mm
Transport position depth (mm)1030 mm1030 mm1030 mm1030 mm
Transport position height (mm)2500 mm2500 mm2500 mm2500 mm
Outfeed conveyor width (mm)300 mm300 mm300 mm300 mm
Outfeed conveyor length (mm)4400 mm4400 mm4400 mm4400 mm
Infeed conveyor width (mm)150 mm150 mm150 mm150 mm
