Japa® 405

Smart efficiency for professionals

Download brochure

Product videos

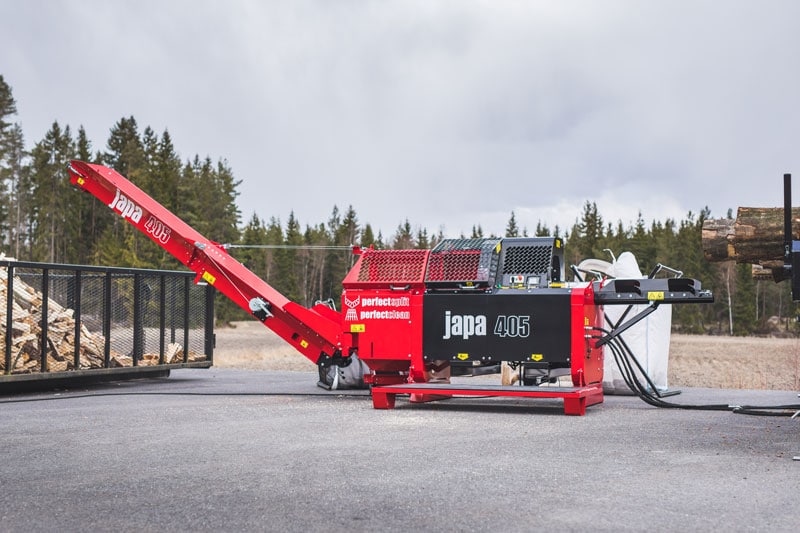

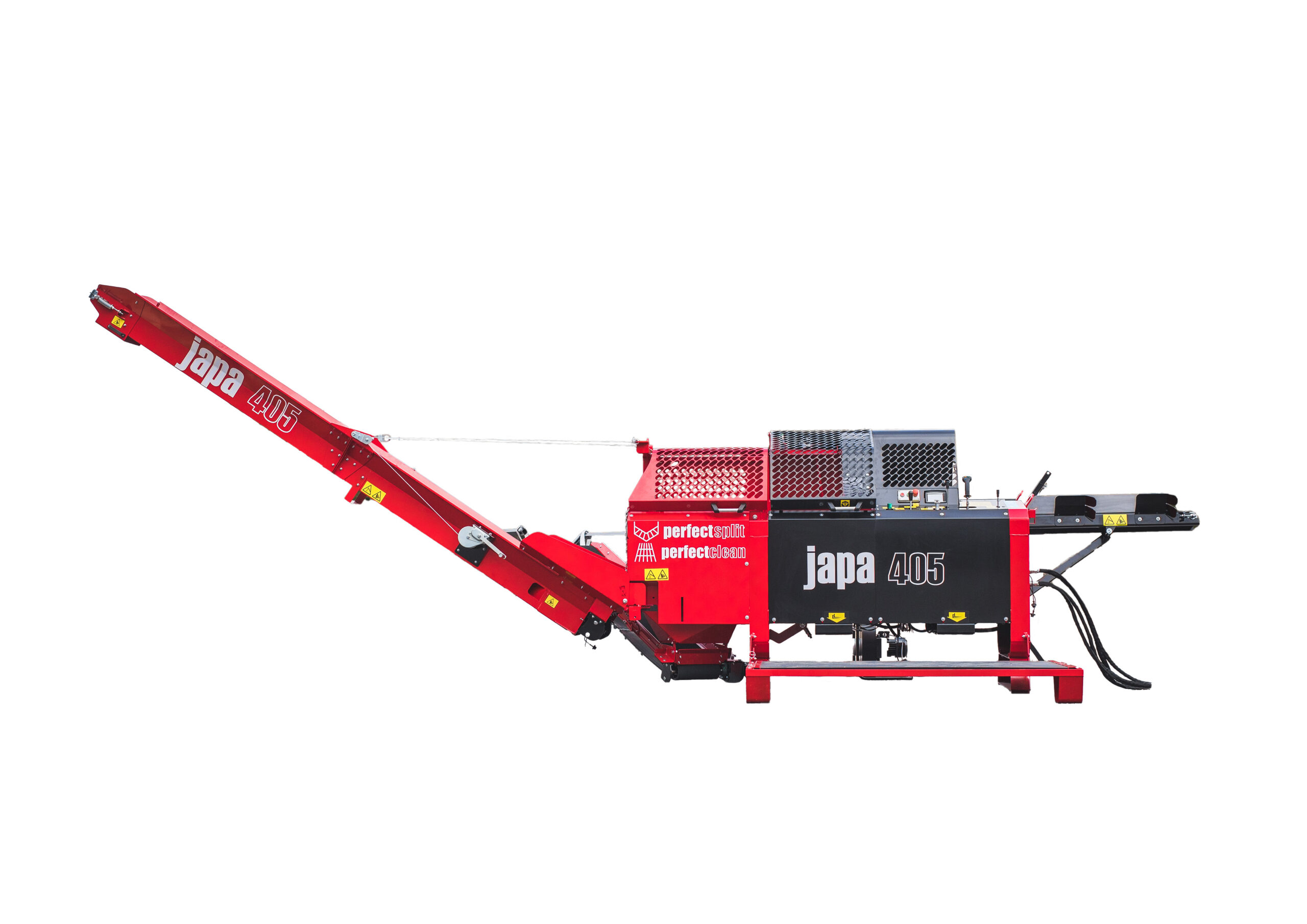

Japa® 405 is a new-generation  firewood processor for professional use. The operation of the Japa® 405 model is controlled by a smart system that assists the user. The machine is equipped with sensors that measure and control its operation in real time.

The processor optimises its own performance, based on wood type, which makes Japa® 405 particularly well suited for all log sizes. In addition to this, the processor has a data connection, which allows connecting to the factory, for example, in the case of updates.

Two splitting methods as standard features

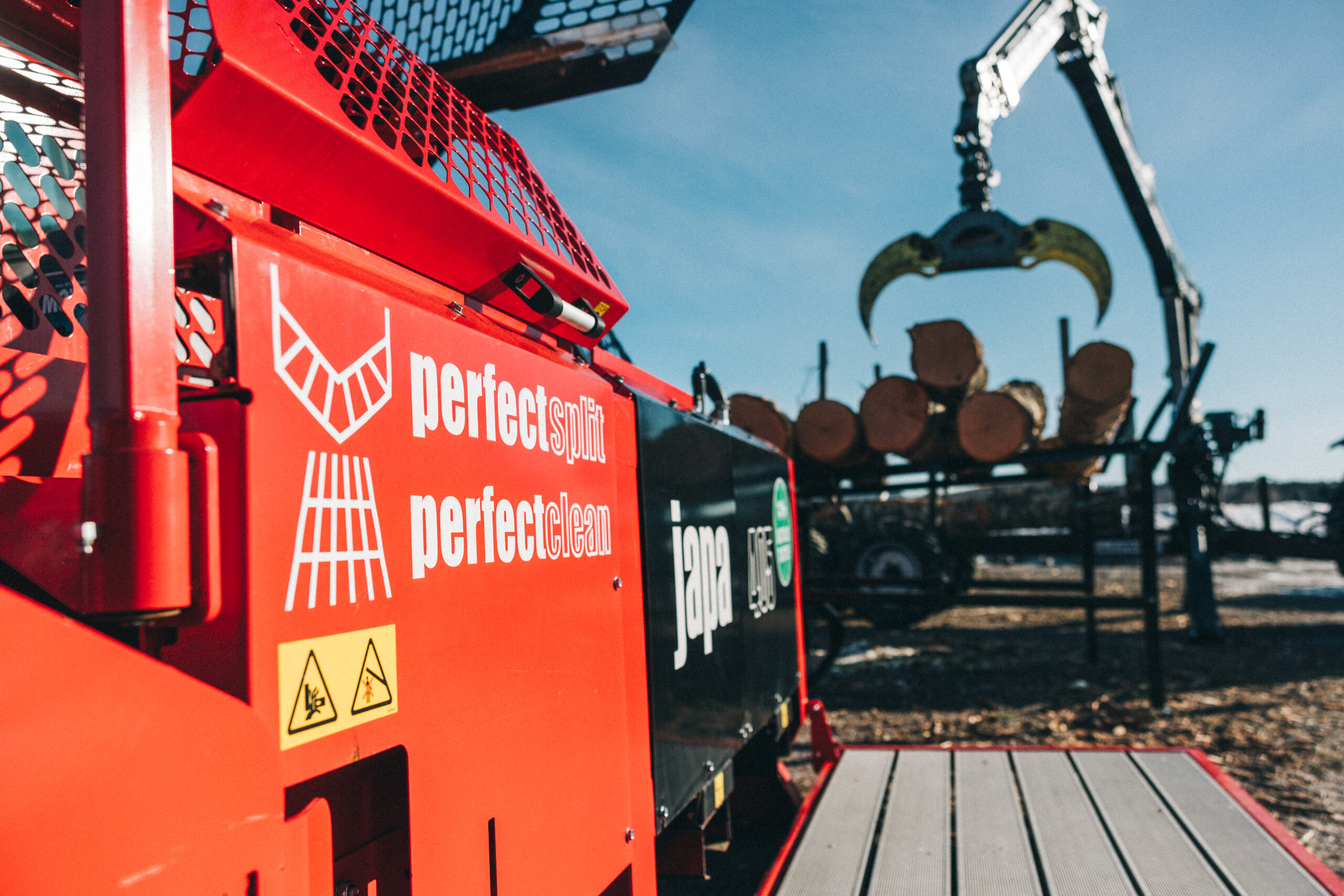

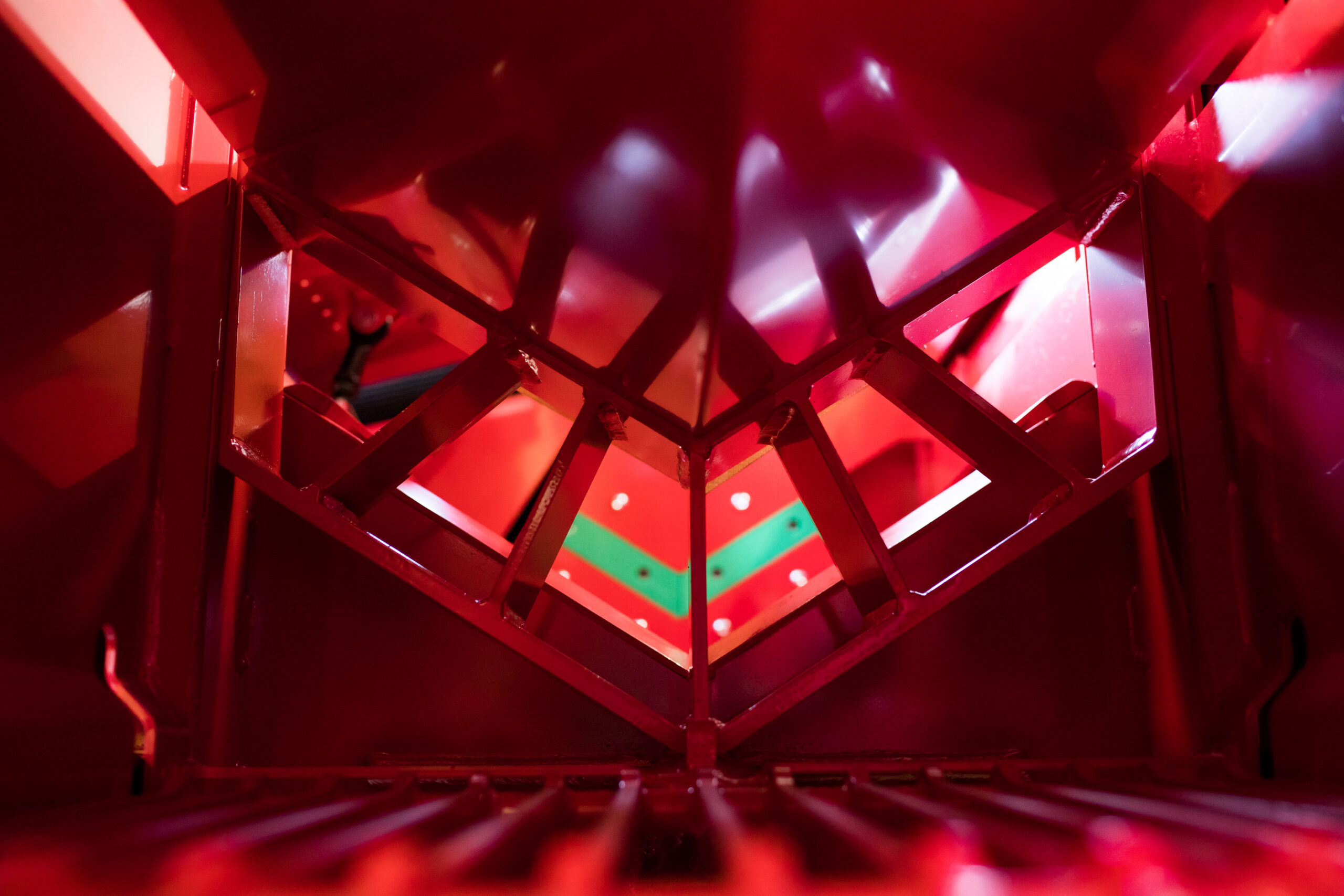

Japa® 405 splits all sizes of logs efficiently, as it contains two splitting methods as standard features: the PerfectSplit™ method for a grade splitting and the heavy-duty hydraulic knife.

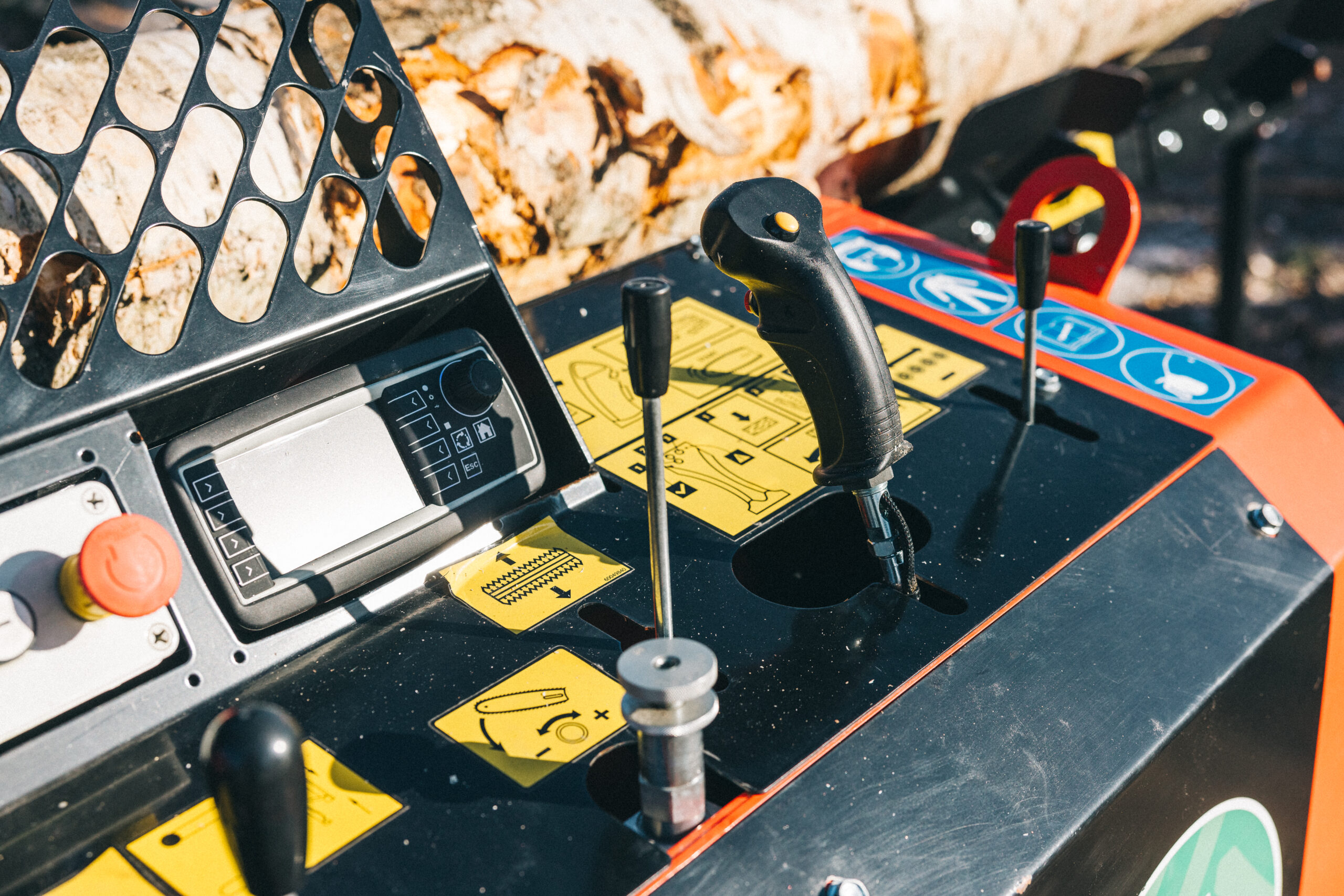

All the key functions of the processor can be performed by one hand with a joystick. The joystick controls feeding, sawing, splitting and the guide plate.

The new logistics also enable semi-automatic operation. For example, the processor detects the right number of splits automatically when using the Perfect Split™ blade.

GeneralTRETRE
Tree diameter (max, cm)40 cm40 cm40 cm
Tree length (max, cm)52 cm52 cm52 cm
TRETRE
Splitting power (T)12.5 T12.5 T12.5 T
Cutting TRETRE
Chain saw flange16"/.325/1.5mm16"/.325/1.5mm16"/.325/1.5mm
Chain saw chain16"/.325/66 L16"/.325/66 L16"/.325/66 L
Chain saw oil tank volume3 l3 l3 l
Hydraulic oil amount (L)45 l45 l45 l
TRETRE

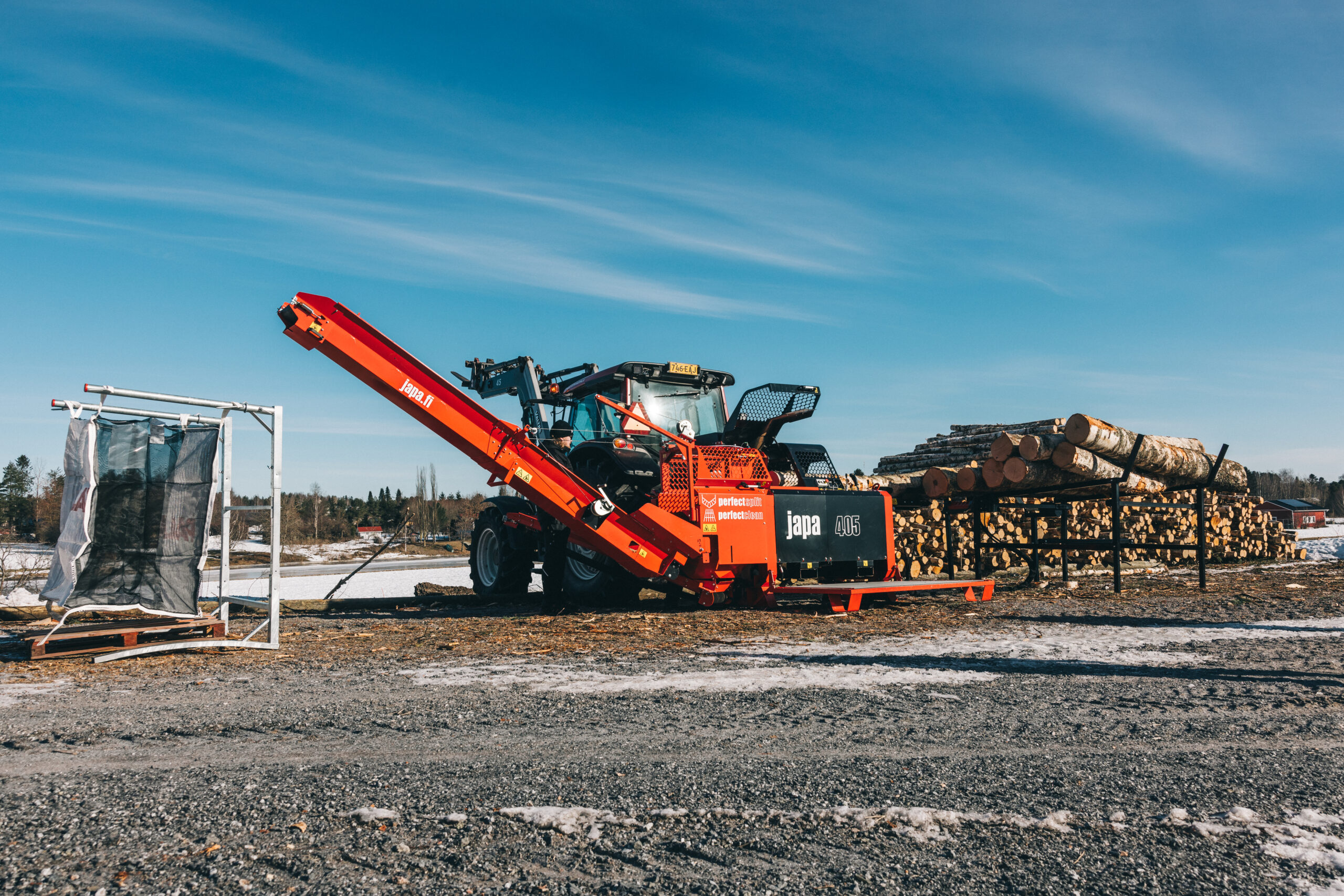

Power sourceElectric + tractorTractorElectric
Power TRETRE
Electric motor power (kW)10 kW10 kW
Electric motor voltage (V)400 V400 V
Tractor power output (r/min)400 rpm400 rpm
Transmission oil80W-9080W-90
TRETRE
Weight (kg)1516 kg1416 kg1466 kg
Working position width (mm)7345 mm7345 mm7345 mm
Working position depth (mm)3730 mm3730 mm3730 mm
Working position height (mm)3420 mm3420 mm3420 mm
Transport position width (mm)3420 mm3420 mm3420 mm
Transport position depth (mm)1525 mm1525 mm1525 mm
Transport position height (mm)2715 mm2715 mm2715 mm
Outfeed conveyor width (mm)300 mm300 mm300 mm
Outfeed conveyor length (mm)4400 mm4400 mm4400 mm
Infeed conveyor width (mm)200 mm200 mm200 mm
